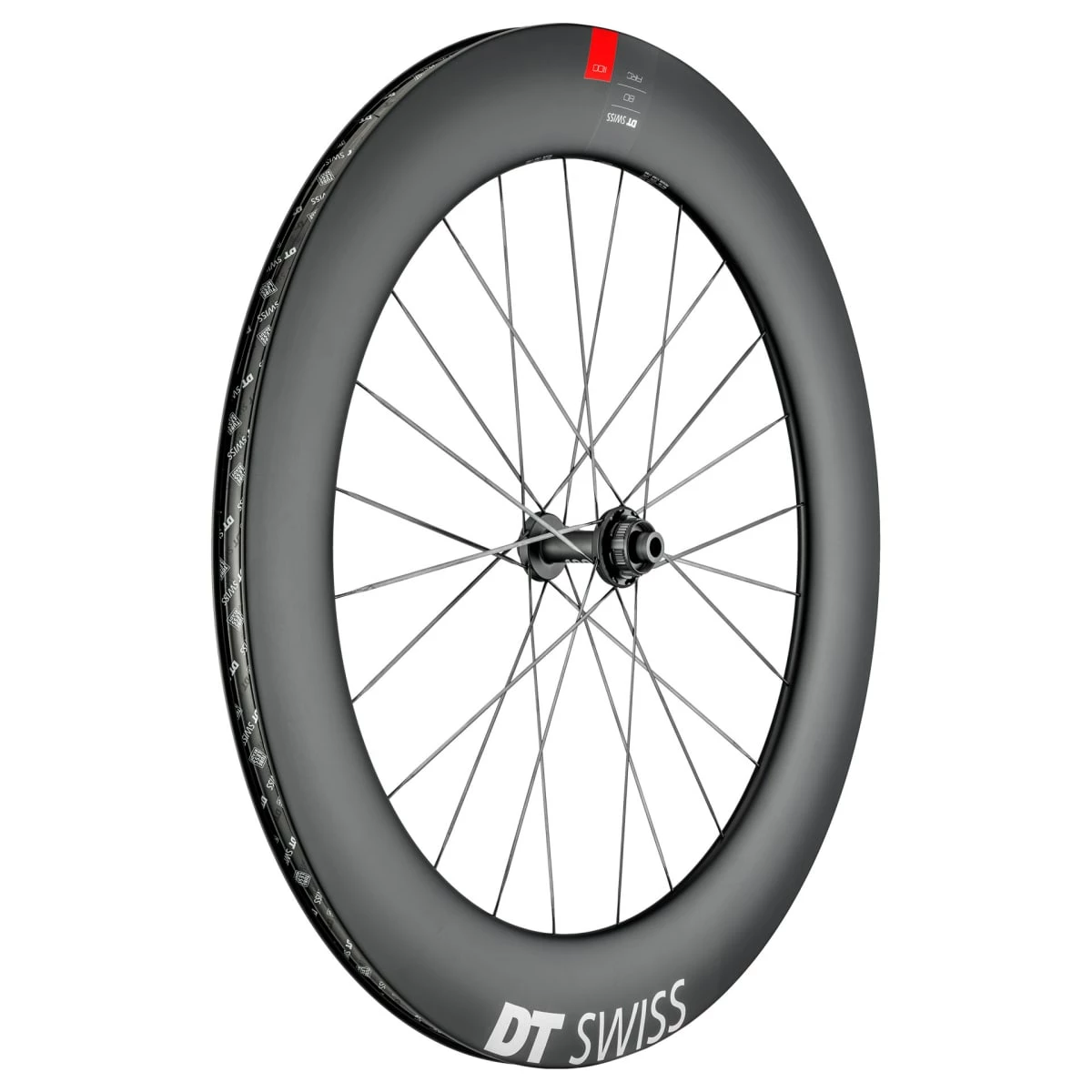

Dt-swiss ARC 1100 Dicut® DB 80 Carbon Aero Road Front Wheel 28″/700C

With an 80 mm deep AERO+ profile rim and SINC Ceramic ball bearings, the ARC 1100 Dicut® DB 80 Carbon is the ultimate “high-speed” front wheel in DT Swiss’ aero line-up!

The system wheel for disc brakes is virtually predestined for flat and fast courses at triathlon and time trial events. High stiffness values and the wheel’s low weight impress pros and ambitious amateur cyclists alike – in fact, all those who like to ride fast.

The leading component technology by DT Swiss and SWISS SIDE’s know-how in aerodynamics give the carbon wheel unparalleled control and aero stability. The AERO+ carbon rim that was developed based on sophisticated, computer aided simulations and numerous wind tunnel tests is just one part of the entire aerodynamic wheel system optimised for use in combination with powerful disc brakes.

Optimised against wind shear and crosswinds, it rotates at top speed around the legendary 180 front hub with aerodynamic DT Swiss bladed spokes. With its outstanding SINC Ceramic bearing, it ensures maximum efficiency and smooth running with particularly high durability. With the ARC 1100 Dicut® DB 80 front wheel, the standard of aerodynamic DT Swiss wheels has been raised to a new level.

Excellent tubeless compatibility provides less weight, improved puncture resistance, lower rolling resistance and more comfort when equipped with tubeless tyres.

Technologies:

• AERO+:
The symbiosis of air resistance, handling and efficiency. – The optimisation of the wheel aerodynamics by DT Swiss in cooperation with SWISS SIDE reduces rotational and air resistance for low-friction acceleration and controlled steering behaviour in crosswinds. In combination with a larger inner rim dimension for wider tyres, rolling resistance is also reduced. Traction and comfort are enhanced by the wide contact patch.

• SINC CERAMIC:
The SINC Ceramic ball bearing, developed as a system by DT Swiss, ensures optimal functioning in all conditions with minimal friction. Particularly resistant ceramic balls made of silicon nitride (Si3N4) in combination with precision-ground steel bearing rings reduce rolling resistance. The sealed hybrid bearing is wear and corrosion resistant and promises particularly high durability. Each DT Swiss SINC bearing is individually checked, precisely adjusted to the tolerances of the hub bearing seats and tested.

• TUBELESS:
All DT Swiss wheels are tubeless ready. The profiles of the DT Swiss rims are specially designed for tubeless use. The rim profile makes it easier to fit the right tyre and ensures a perfect fit. The tubeless system of the rim consists of DT Swiss tubeless ready tape for sealing and a DT Swiss tubeless valve in a length that complies with the rim. When using tubeless ready tyres, a compatible sealant must be used. However, it is also possible to use a conventional combination of tyre and inner tube.

• BEARINGS:
Having learned from years of experience, DT Swiss only uses durable cartridge bearings without bearing play adjustment. DT Swiss hubs are designed to have the optimum axial and radial bearing play when they are properly installed. The correct preload of the bearings to compensate for the clamping force of the wheel mounting system is the basis for a play-free hub with minimum friction.

Technical details:

Rim:
• Wheel size: 28”
• Rim material: carbon
• Rim type: clincher (symmetrical)
• Brake type: disc brake
• Rim depth: 80 mm
• Rim width: 32 mm
• Inner rim width: 20 mm
• ETRTO: 622 – 20
• For Presta valve (Ø 6.5 mm)
• Tubeless ready
• Suitable for tyre widths: 25 – 64 mm (recommended max. tyre width: 34 mm)

Spokes and nipples:
• Spoke type: DT aerolite® II t-head
• Number of spokes: 24 pcs
• Spoke pattern: 2-cross
• Nipples: DT Swiss Pro Lock® hidden aluminium

• Hub body:
• 180, Dicut®, 2 bearings, SINC Ceramic, sealed
• For disc brakes
• Aluminium hub body
• CenterLock brake rotor mount (IS 6-bolt with adapter, e.g. prod. code: 2283716)

Axle:
• Front wheel: 12 x 100 mm (thru axle)

Weight:
• Weight: approx. 820 g
• ASTM classification: 1 (for use on asphalt roads)
• Max. system weight: 110 kg (cyclist, bike, gear and luggage)

In the box:
• 1 DT Swiss ARC 1100 Dicut® DB 80 Carbon Aero front wheel
• 1 DT Swiss Tubeless Ready rim tape 23 mm (fitted)
• 1 DT Swiss tubeless valve 66-80 mm
• 1 DT Swiss valve guard
• 1 DT Swiss wheel bag
