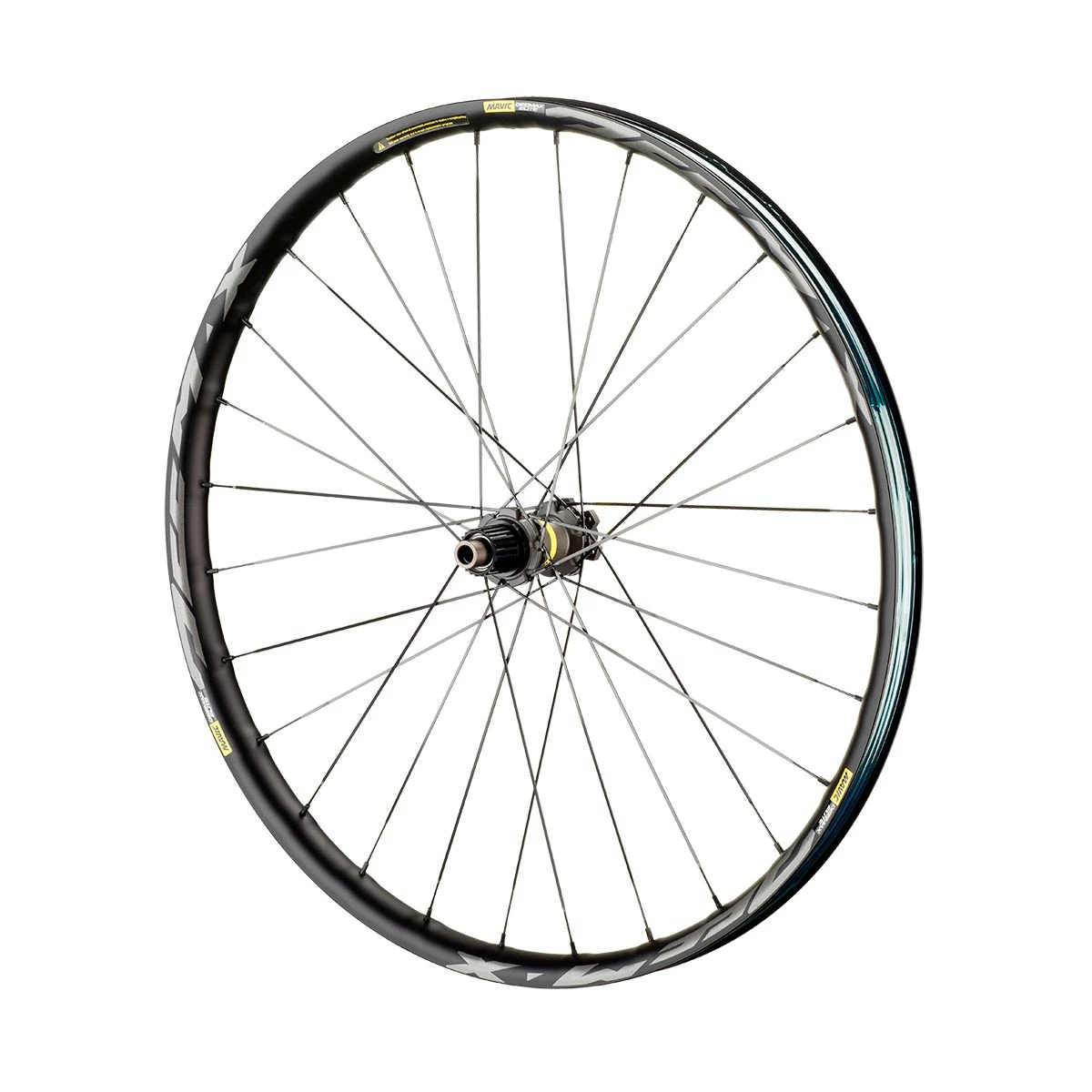

Mavic Deemax Elite Disc MICRO SPLINE MTB Wheels 27.5”/29”

Gravity freaks and aggressive trail and enduro riders need solidly built wheels. For all those who want to race on rough an technical trails, Mavic has designed the Deemax Elite system wheels.
Robust, 30 mm wide UST Tubeless Maxtal alloy rims are built to last – whatever situation you might face. Designed for modern, large-volume tyres, they offer just the right level of stiffness and vertical flexibility to fly over blocked trails at high speeds and leave your buddies behind.
Mavic’s patented ISM 4D weight tuning makes for a low weight without compromising on stiffness and stability. 28 double butted steel spokes front and rear ensure a stable connection to Mavic’s robust QRM hubs that impress with excellent bearings and outstanding durability. The high-quality Instant Drive 360 freehub for SHIMANO MICRO SPLINE cassettes guarantees maximum agility while providing fast engagement and excellent propulsion thanks to an effective, 40-tooth ratchet system. So no matter if it’s an enduro race, an aggressive trail tour or a day in the bike park – Mavic’s Deemax Elite system wheels can do it all.

Consisting of front and rear wheel:

• Rim material: Maxtal aluminium
• ISM 4D weight tuning
• UST tubeless ready
• SUP welded rim seam
• Hookless rim profile, asymmetric
• Rim width: 34 mm
• For Presta valve (Ø 6.5 mm)

• ETRTO 27.5″: 584x30C
• ETRTO 29″: 622x30C

• Spokes: straightpull, aero profile, double butted
• Spoke material: steel
• Number of spokes: Front wheel: 28 pcs/rear wheel: 28 pieces
• Spoke pattern: Front wheel: 3-cross/rear wheel: 3-cross

• Hub body/front axle: aluminium
• Hub body/rear axle: aluminium
• Freehub body: Instant Drive 360, aluminium
• Disc brake mount: IS 6-bolt
• Front wheel bearing unit: self-adjusting, sealed cartridge bearings (QRM Auto)
• Rear wheel bearing unit: self-adjusting, sealed cartridge bearings (QRM Auto)

• Front axle: 15×100 mm (convertible to 20×110 mm thru axle)
• Rear axle: 12×142 mm (may be converted to 12×135 mm and 5×135 mm quick release)

• SHIMANO MICRO SPLINE freehub body 12-speed/11-speed WIDE FLANGE
ATTENTION:
ONLY compatible with SHIMANO MICRO SPLINE cassettes, e.g. Deore XT CS-M8100 (prod. code: 2286360).

• Max. system weight: 120 kg (cyclist, bike, gear and luggage)
• Intended use: ASTM category 4: for rough off-road riding and jumps up to 24 in./122 cm
• Recommended tyre width: 2.25“-3.00“

• Weight 27.5”: set: approx. 1,945 g; front wheel: approx. 892 g; rear wheel: approx. 1053 g
• Weight 29”: set: approx. 2,040 g; front wheel: approx. 938 g; rear wheel: approx. 1102 g

In the box:
• 1x Mavic Deemax Elite Disc front wheel incl. tubeless rim tape
• 1x Mavic Deemax Elite Disc rear wheel incl. tubeless rim tape
• 2x Mavic UST valves
• 1x Mavic front wheel conversion kit 20×110 mm
• Brake disc bolts
